Omeprazole

CAS NO. 119141-89-8

(RS)-5-methoxy-2-((4-methoxy-3,5-dimethylpyridin-2-yl) methylsulfinyl)-1H-benzo[d]imidazole

Omeprazole
CAS No.: 119141-89-8
Synonyms:
  • ZOLTUM;
  • PRILOSEC;
  • LOSEC;
  • GASTROGARD;
  • ANTRA;
  • OMEPRAL;
  • MEPRAL;
  • H 168/68;
  • GASTROLOC;
  • MOPRAL;
Formula: C17H19N3O3S
Exact Mass: 345.11500

Ome is a chemical substance (C17H19N3O3S), its molecular weight is 345.42g/mol, the color is white, has weak alkaline properties, melts at 156oC

ome 1h nmr

NMR……………http://file.selleckchem.com/downloads/nmr/S138902-Omeprazole-Prilosec-HNMR-Selleck.pdf

NMR………..file:///C:/Users/anthonyc/Downloads/233-434-1-SM.pdf

1H NMR PREDICT

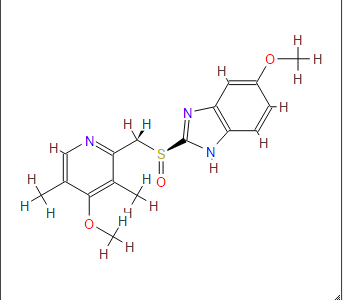

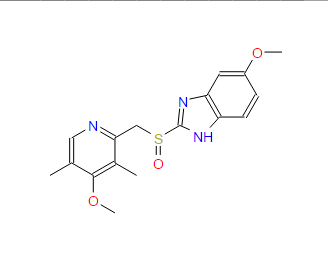

STR

STR 2

OMEPRAZOLE NMR spectra analysis, Chemical CAS NO. 119141-89-8 NMR spectral analysis, OMEPRAZOLE H-NMR spectrum

13C NMR PREDICT

OMEPRAZOLE NMR spectra analysis, Chemical CAS NO. 119141-89-8 NMR spectral analysis, OMEPRAZOLE C-NMR spectrum

COSY

COSY NMR prediction (7)

HMBC

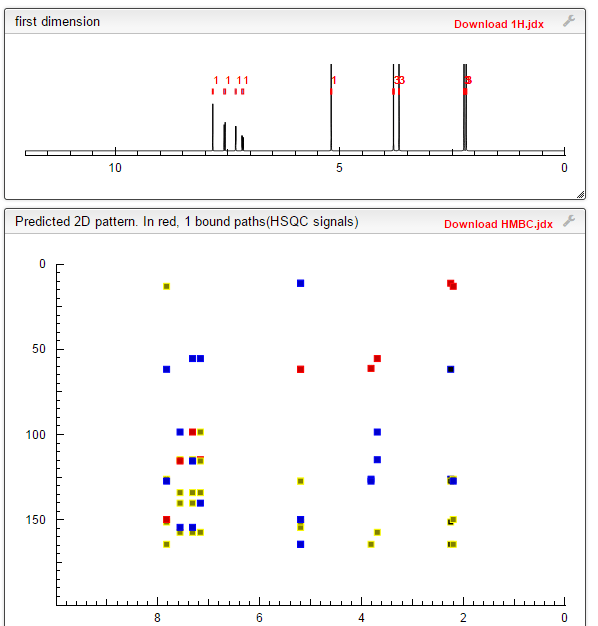

HMBC, HSQC NMR prediction (1)


………………………………..

Displaying image004.png

Displaying image006.png

ARKIVOC 2006 (v) 5-11

The structure of Omeprazole in the solid state: a 13C and 15N NMR/CPMAS study

Rosa M. Claramunt,a Concepción López,a and José Elguerob *

a Departamento de Química Orgánica y Bio-Orgánica, Facultad de Ciencias, UNED, Senda del Rey 9, E-28040 Madrid, Spain

b Instituto de Química Médica, CSIC, Juan de la Cierva, 3. E-28006 Madrid, Spain

E-mail: iqmbe17@iqm.csic.es

http://www.arkat-usa.org/get-file/22955/

Abstract

The 13C and 15N CPMAS spectra of a solid sample of Omeprazole have been recorded and all the signals assigned. The sample consists uniquely of the 6-methoxy tautomer. For analytical purposes, the signals of the other tautomer, the 5-methoxy one, were estimated from the data in solution (Magn. Reson. Chem. 2004, 42, 712).

Keywords: Omeprazole, NMR, 13C, 15N, CPMAS, tautomerism, benzimidazole

Displaying image008.png

Omeprazole, 5(6)-methoxy-2-{(4-methoxy-3,5-dimethyl-2-pyridinyl)methyl]sulfinyl}-1H-benz – imidazole [1(2)], is an important ulcer drug,1 that has been classified amongst the blockbuster drugs.2 This compound presents two sources of structural differentiation. First, Omeprazole is chiral (a vs. b) 3 since it has a stereogenic center on the sulfur atom but the commercial form has been sold, until recently, as a racemate. In 2001, Esomeprazole magnesium, the S enantiomer was approved.4 The second source of diversity is that these compounds present tautomerism (1 vs. 2). We have already devoted a paper to the tautomerism of Omeprazole in solution using 1 H and 13C NMR spectroscopy.5 In this paper a complete assignment of the signals was carried out and the tautomeric equilibrium constant, KT = [2]/[1], was determined in THF at 195 K, to be 0.59 in favor of the 6-methoxy tautomer 2.

Displaying image010.png

Displaying image012.png

References

1. Carlsson, E.; Lindberg, P.; von Unge, S. Chem. Brit. 2002, 38, 42 and references therein.

2. Berkowitz, B. A.; Sachs, G. Mol. Interventions 2002, 2, 6.

3. von Unge, S.; Langer, V.; Sjölin, L. Tetrahedron: Asymmetry 1997, 8, 1967.

4. Olbe, L.; Carlsson, E.; Lindberg, P. Nature Reviews Drug Discovery 2003, 2, 132.

5. Claramunt, R. M.; López, C.; Alkorta, I.; Elguero, J.; Yang, R.; Schulman, S. Magn. Reson. Chem. 2004, 42, 712.

6. Elguero, J.; Katritzky, A. R.; Denisko, O. Adv. Heterocycl. Chem. 2000, 76. 1.

7. Allen, F. H. Acta Crystallogr. Sect. B 2002, 58, 380.

8. Braga, S. S.; Ribeiro-Claro, P.; Pillinger, M.; Gonçalves, I. S.; Fernandes, A. C.; Pereira, F.; Romåo, C. C.; Correia, P. B.; Teixeira-Dias, J. J. C. J. Incl. Phenom. Macro. Chem. 2003, 47, 47.

9. Berger, S.; Braun, S. 200 and More NMR Experiments. Wiley-VCH, Weinheim, 2004.

Displaying image.png

Displaying image038.png

DSC OF OMEPRAZOLE

UV

Displaying image.png

UV Study: The Ultraviolet spectrum was recorded from 200 nm to 400 nm, with API concentration of 0.0015% in methanol. The spectrum showed two λmax at 207 and 301 nm. As seen below.

Displaying image039.png

FTIR Study The FTIR of spectrum of Omeprazole was recorded by preparation of pellet with KBr.

Displaying image041.pngDisplaying image040.png

 Displaying image.png

Displaying image.png

NMR

 Displaying image042.png

Displaying image043.png

Displaying image044.png

Displaying image.png

Displaying image.png

Displaying image.png

13 C NMR



 Displaying image045.png

Displaying image.png

Displaying image.png

mass

The mass spectrum of Omeprazole was recorded on 4000-Q trap LCMSMS system. The sample is introduced into the system through HPLC by bypassing the column. The ESI +ve ionization spectrum of Omeprazole displayed a protonated molecular ion at m/z= 346 which corresponds to the molecular formula C17H17N3O3S. The fragmentation pattern was observed with product ion scan.

 Displaying image046.png

Displaying image.png

Displaying image.png

Displaying image.png

Raman

Displaying image.png

Displaying image.png

Displaying image.png

Displaying image.png

Title: Omeprazole
CAS Registry Number: 73590-58-6
CAS Name: 5-Methoxy-2-[[(4-methoxy-3,5-dimethyl-2-pyridinyl)methyl]sulfinyl]-1H-benzimidazole
Manufacturers’ Codes: H-168/68
Trademarks: Gastrogard (Merial); Losec (AstraZeneca); Mopral (AstraZeneca); OmeLich (Winthrop); Omelind (Lindopharm); Omepral (AstraZeneca); Omeprazen (Malesci); Osiren (Probiomed); Parizac (Lacer); Pepticum (Grñenthal); Prilosec (AstraZeneca); Zegerid (Santarus); Zoltum (AstraZeneca)
Molecular Formula: C17H19N3O3S
Molecular Weight: 345.42
Percent Composition: C 59.11%, H 5.54%, N 12.16%, O 13.90%, S 9.28%
Literature References: Gastric proton-pump inhibitor. Prepn: U. K. Junggren, S. E. Sjostrand, EP 5129; eidem, US 4255431(1979, 1981 both to AB Hässle). Resolution and activity of enantiomers: P. Erlandsson et al., J. Chromatogr. 532, 305 (1990). Manuf process for optically pure salts: S. Von Unge, US 5693818 (1997 to Astra). Pharmacology: P. Muller et al., Arzneim.-Forsch. 33, 1685 (1983). Mechanism of action study: B. Wallmark et al., Biochim. Biophys. Acta 778, 549 (1984). LC determn in plasma and urine: P. Lagerstrom, B. Persson, J. Chromatogr. 309, 347 (1984). Survey of preclinical data: Scand. J. Gastroenterol. 20, Suppl 108, 1-120 (1985). Toxicological studies: L. Ekman et al., ibid. 53. Clinical trial in Zollinger-Ellison syndrome: C. B. H. W. Lamers et al., N. Engl. J. Med. 310, 758 (1984); in duodenal ulcer: K. Lauritsen et al., ibid. 312, 958 (1985). Veterinary trial in race horses: M. J. Murray et al., Equine Vet. J. 29, 425 (1997). Review of pharmacology and clinical efficacy: H. D. Langtry, M. I. Wilde, Drugs 56, 447-486 (1998).
Properties: Crystals from acetonitrile, mp 156°. Freely sol in ethanol, methanol; slightly sol in acetone, isopropanol; very slightly sol in water. LD50 in mice, rats (g/kg): 0.08, >0.05 i.v.; >4, >4 orally (Ekman).
Melting point: mp 156°
Toxicity data: LD50 in mice, rats (g/kg): 0.08, >0.05 i.v.; >4, >4 orally (Ekman)
Derivative Type: Magnesium salt
CAS Registry Number: 95382-33-5
Trademarks: Antra (AstraZeneca); Gastracid (AWD); Gastroloc (AstraZeneca); Omebeta (Betapharm); Omep (Hexal); Ome-Puren (Alpharma)
Molecular Formula: C34H36MgN6O6S2
Molecular Weight: 713.12
Percent Composition: C 57.26%, H 5.09%, Mg 3.41%, N 11.78%, O 13.46%, S 8.99%
Derivative Type: S-Form
CAS Registry Number: 119141-88-7
Additional Names: Esomeprazole; perprazole
Manufacturers’ Codes: H-199/18
Literature References: LC-MS determn in plasma: H. Stenhoff et al., J. Chromatogr. B 734, 191 (1999).
Properties: Colorless syrup. [a]D20 -155° (c = 0.5 in chloroform).
Optical Rotation: [a]D20 -155° (c = 0.5 in chloroform)
Derivative Type: S-Form magnesium salt
CAS Registry Number: 161973-10-0
CAS Name: (T-4)-Bis[5-methoxy-2-[(S)-[(4-methoxy-3,5-dimethyl-2-pyridinyl)methyl]sulfinyl]-1H-benzimidazolato]magnesium
Additional Names: esomeprazole magnesium
Trademarks: Nexium (AstraZeneca)
Literature References: Review of clinical experience in acid disorders: D. A. Johnson, Expert Opin. Pharmacother. 4, 253-264 (2003).
Properties: White powder. [a]D20 -128.2° (c = 1 in methanol).
Optical Rotation: [a]D20 -128.2° (c = 1 in methanol)
Therap-Cat: Antiulcerative; in treatment of Zollinger-Ellison syndrome.
Therap-Cat-Vet: Antiulcerative.
Keywords: Antiulcerative; Gastric Proton Pump Inhibitor.
